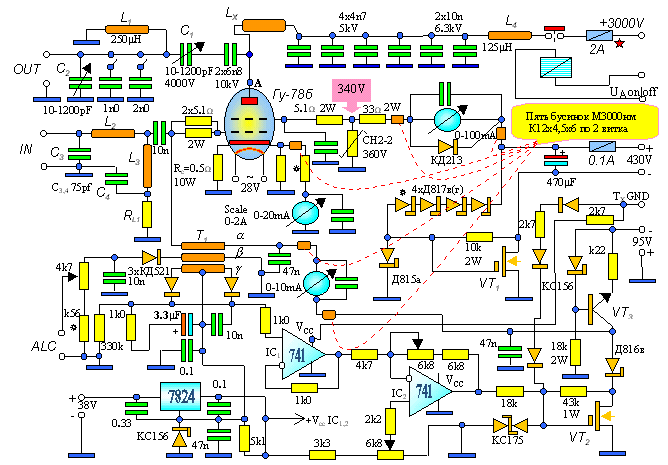

The basic circuit of the amplifier of capacity with automatic adjustment of a current of rest of a radio tube on bending around SSB - a signal.


VT1,2 - 2SJ56 (IRF9640, IRF9620, 2Ï703À)  VT3 - ÊÒ829à  IC1,2 - mA741  IC3 - mA7824  Ò1 - the transformer on field-glass K10h5h4 on 5 rings in column Ì2000ÍÌ or Ê12õ4,5õ6 Ì3000ÍÌ on 4 rings in a column. Tubes from a copper thin foil, shchechki from unilateral fol'girovannogo steklotekstolita, windings wire ÌÃÒÔ-0,07, a - 4 coils, b - 1 coil, g - 1 coil from a tube is used as 2h1/2-coil. L2,3 - 0.27mH, a design - beskarkasnye, a coil to a coil by wire ÏÝÂ-2 O 1ìì, 6 coils, O coils 10ìì.    To arrange on a payment it is vzaimo-perpendicular. RL1 - 51 W, 20 Watts (10 resistors MLT-2 510W.). LX - O coils (average) 80ìì, O tubes 6ìì Cu, 12 coils, length of the coil 120ìì, inductance 8,4 mH. Taps(removals), for reception of other values of inductance, - to switch zamykateljami from MANAGEMENT INFORMATION SYSTEM RPU Ð-631.

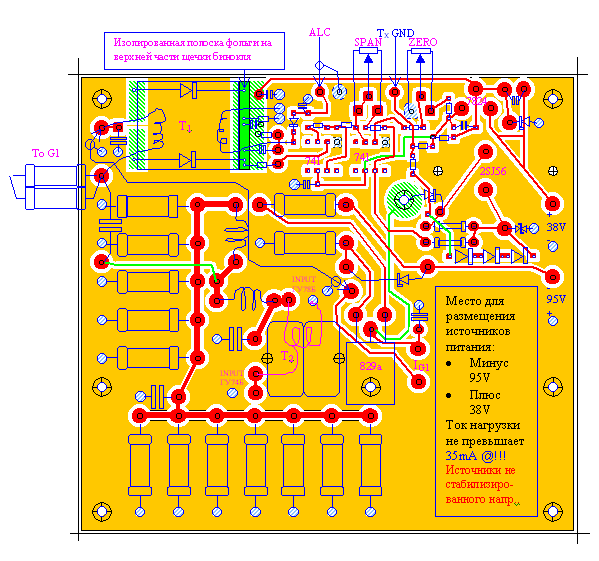

The circuit of accommodation of radiocomponents on the printed-circuit-board.
Kind on the part of the bottom layer.
M 1:1.

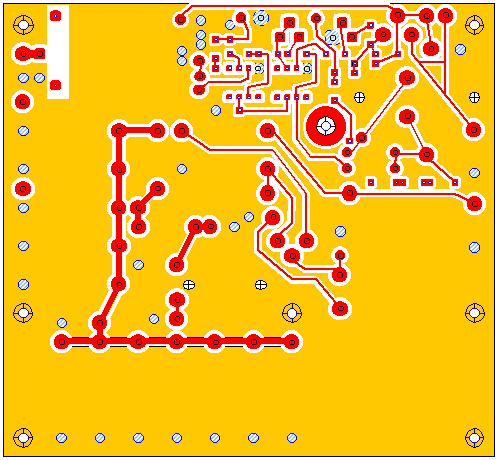

Topology of the printed-circuit-board.
The bottom layer.
M 1:1.

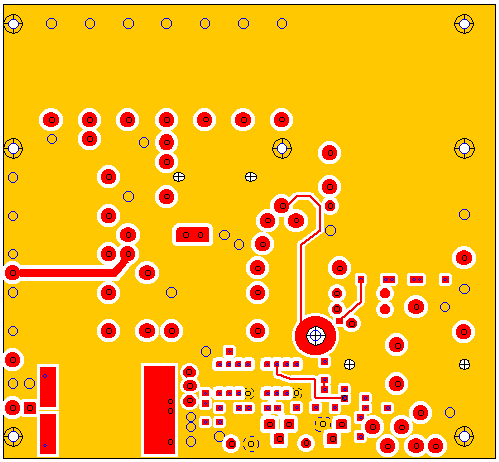

The top layer of topology of a payment.
M 1:1


G.G.falcon (UA6CL)
E-mail: ua6cl@nvrsk.net
Post address: P.O.Box 22, Novorossiysk, 353900, RUSSIA.
